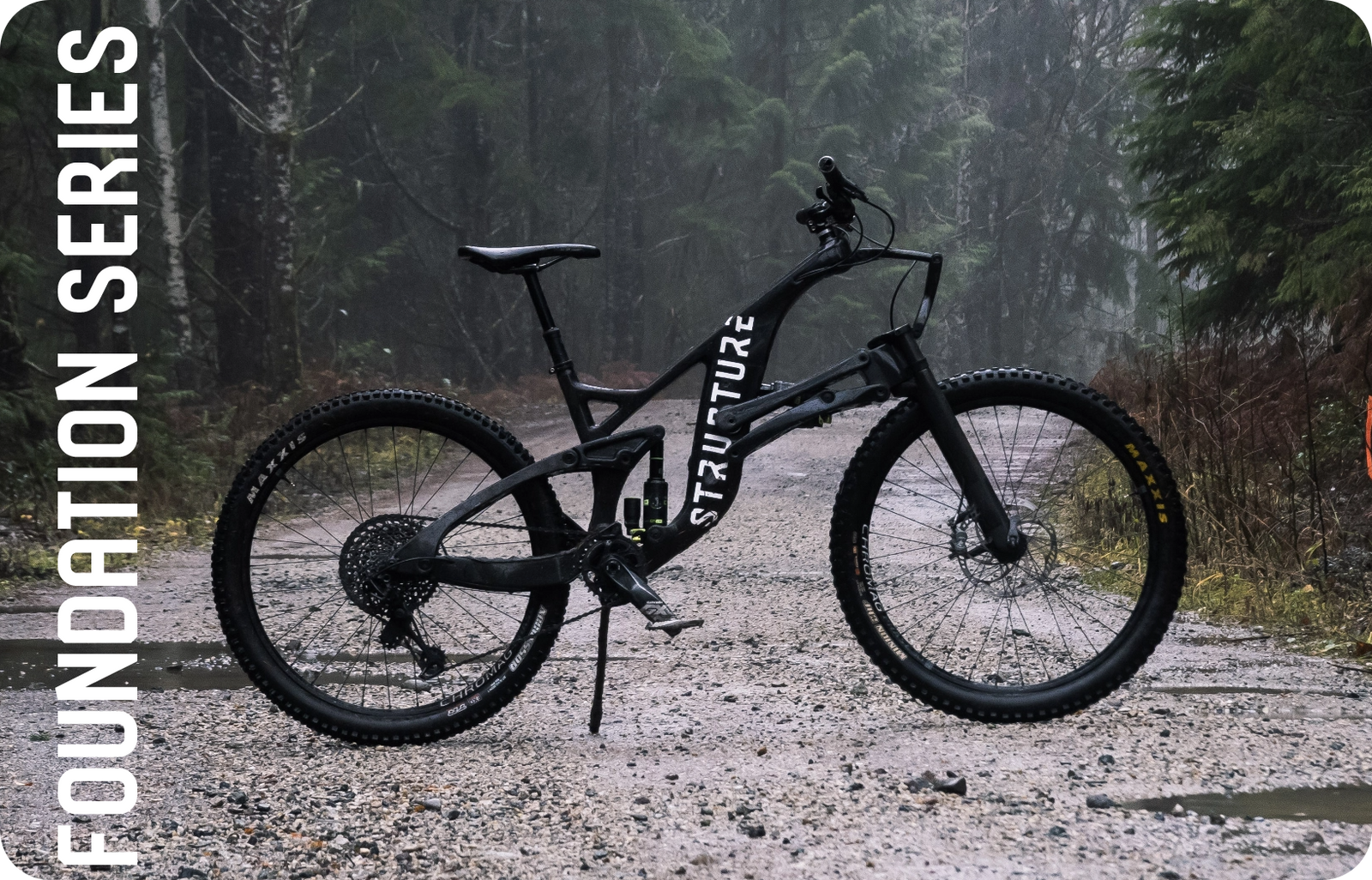

WTF SUSPENSION SYSTEM


Structure Cycleworks introduces the Without Telescoping Fork (WTF™) Suspension chassis. No matter how much the telescoping suspension fork is refined, it will always have inherent limitations. Moving beyond telescoping limitations to a linkage design allows Structure complete control over:


  • Dynamic geometry

  • Brake dive

  • Kinematics

  • Chassis integration

  • Front/rear balance

  • Rider adjustability

  • Friction reduction


You wouldn’t accept these limitations from your rear suspension. It’s time to

EVOLVE YOUR RIDE

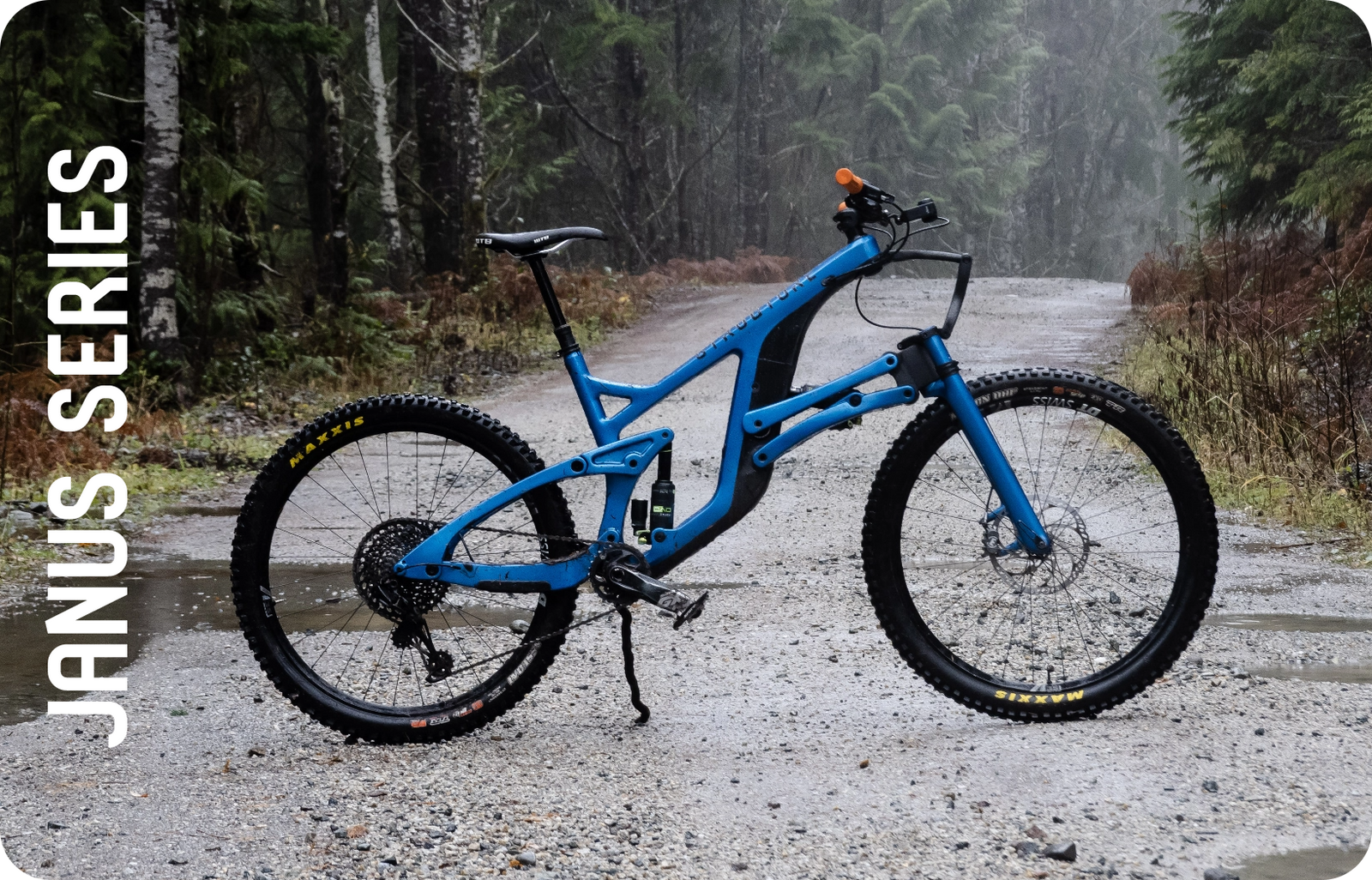

LINKAGE INTEGRATED CHASSIS


Stiffness, compliance, and responsiveness in perfect harmony. A fork and chassis that aren’t just designed to work as a unit, they are a unit.

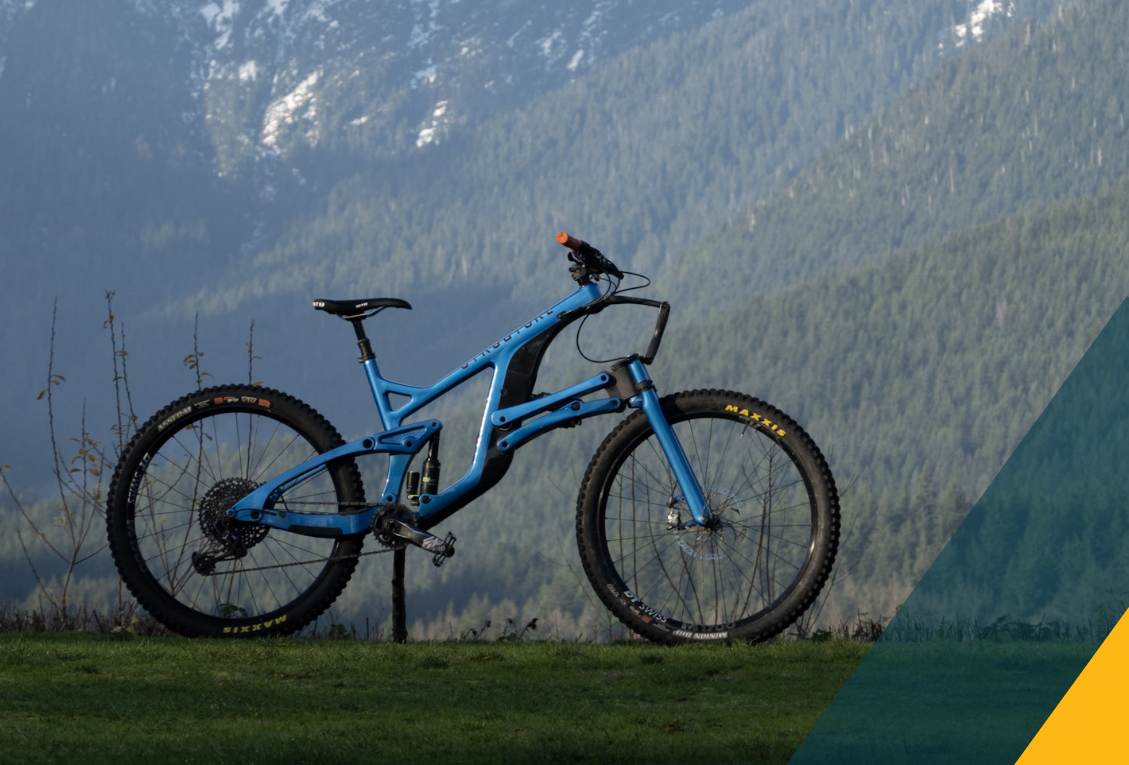

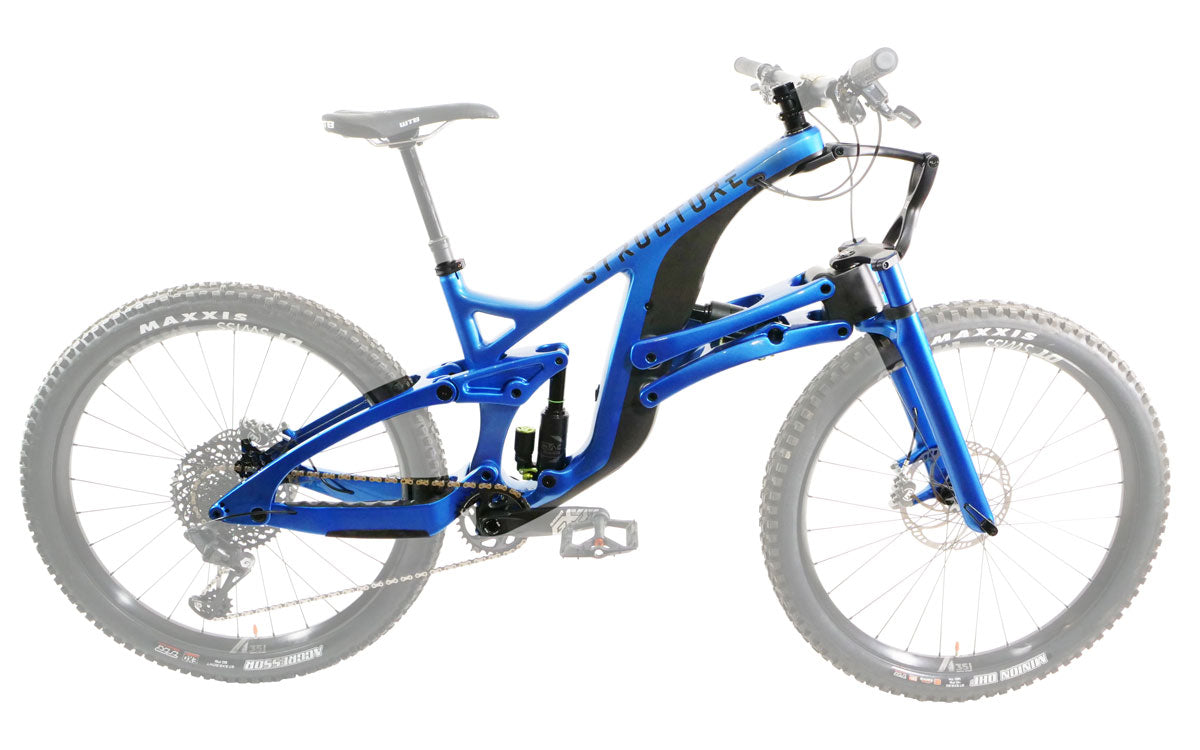

A carbon, double-crown fork connects to the oversized down tube via two robust carbon control arms, creating a stiff, precise platform. Stresses are distributed over the strong core of the frame, rather than concentrating stresses at the head tube, and mass is kept low and centralized for responsive handling.

Front and rear motion ratios are matched for perfectly balanced progressivity and simplified suspension tuning. Sticky fork bushings have been replaced by smooth,  Enduro MAX cartridge bearings for a supple and supportive ride no other chassis can match.

STABILITY ON DEMAND™


Agility when you want it; stability when you need it.

Telescoping forks are most stable when fully extended and least stable when compressed. The result can be clumsy handling when climbing and less steering stability than a road bike when compressed.

WTF Suspension™ begins with trail-bike agility for climbing, gains category-leading stability by the sag point, and becomes more stable than a downhill bike when deep in its travel. Multiple, user-adjustable settings are available for riders to dial in the perfect amount of stability boost.


CHANGES IN HANDLING PARAMETERS WHEN COMPRESSED

(EX. STEEP DESCENTS, LARGE IMPACTS)
WTF SUSPENSION™
TELESCOPING FORK (150MM)
HEAD ANGLE
UP TO 6° SLACKER
UP TO 8° STEEPER
TRAIL
UP TO 52% INCREASE
UP TO 85% DECREASE
LENGTH
APPROX. CONSTANT
APPROX. 55 MM SHORTER
STABILITY
MAXIMUM
MINIMUM

SIZE-SPECIFIC KINEMATICS™

The pedaling and braking properties of a bike are not inherent to the chassis; they depend on the location of a rider’s centre of mass, which can produce inconsistent kinematics between frame sizes. The merits of one suspension design over another are fiercely debated, yet the differences from one size to another of a given model are often greater than the differences between linkage types.

Structure’s Size-Specific Kinematics™ is the only system to fully tune chassis kinematics to the rider. Pedaling and braking responses are consistent between sizes, small chassis are more linear to help light riders access full travel, and large chassis gain additional front and rear progressivity for additional support.

GRAVITY SIZING™


Your bike should fit your body and your riding style.

A small rider may want to ride large lines or a large rider may prefer enhanced maneuverability, but seat tube length often limits the selection of frame sizes.

Taking a cue from the ski and snowboard world, Gravity Sizing™ allows riders to choose a chassis that suits their riding styles, then Structure customizes the seat tube length to make it fit perfectly.

Gravity Sizing™ and Stability on Demand™ combine to create three chassis with three distinct personalities, each of which can be customized to fit a broad spectrum of body sizes.

WIDE RANGE GEOMETRY™

Riders’ body sizes vary by tens of centimeters, yet conventional frame sizes are separated by an average of only two centimeters. Wide Range Geometry™ replaces cluttered, overlapping sizes with meaningful differences in reach between our G1, G2, and G3 variants.

Wide Range Geometry™ also incorporates a steep, 76° seat tube angle to optimally position the rider’s weight when pedaling.

Structure measures this angle at saddle height, rather than the more convenient – but unrealistic – head tube height, to ensure all riders experience the balanced ride qualities of a Structure.

Whether you choose the agile G1, race ready G2, or boundary pushing G3, every Structure purchase includes a consultation with Structure’s design team to ensure your SCW-1 delivers a uniquely tailored and evolved ride.

September 11, 2017

Structure Cycleworks
SCW 1

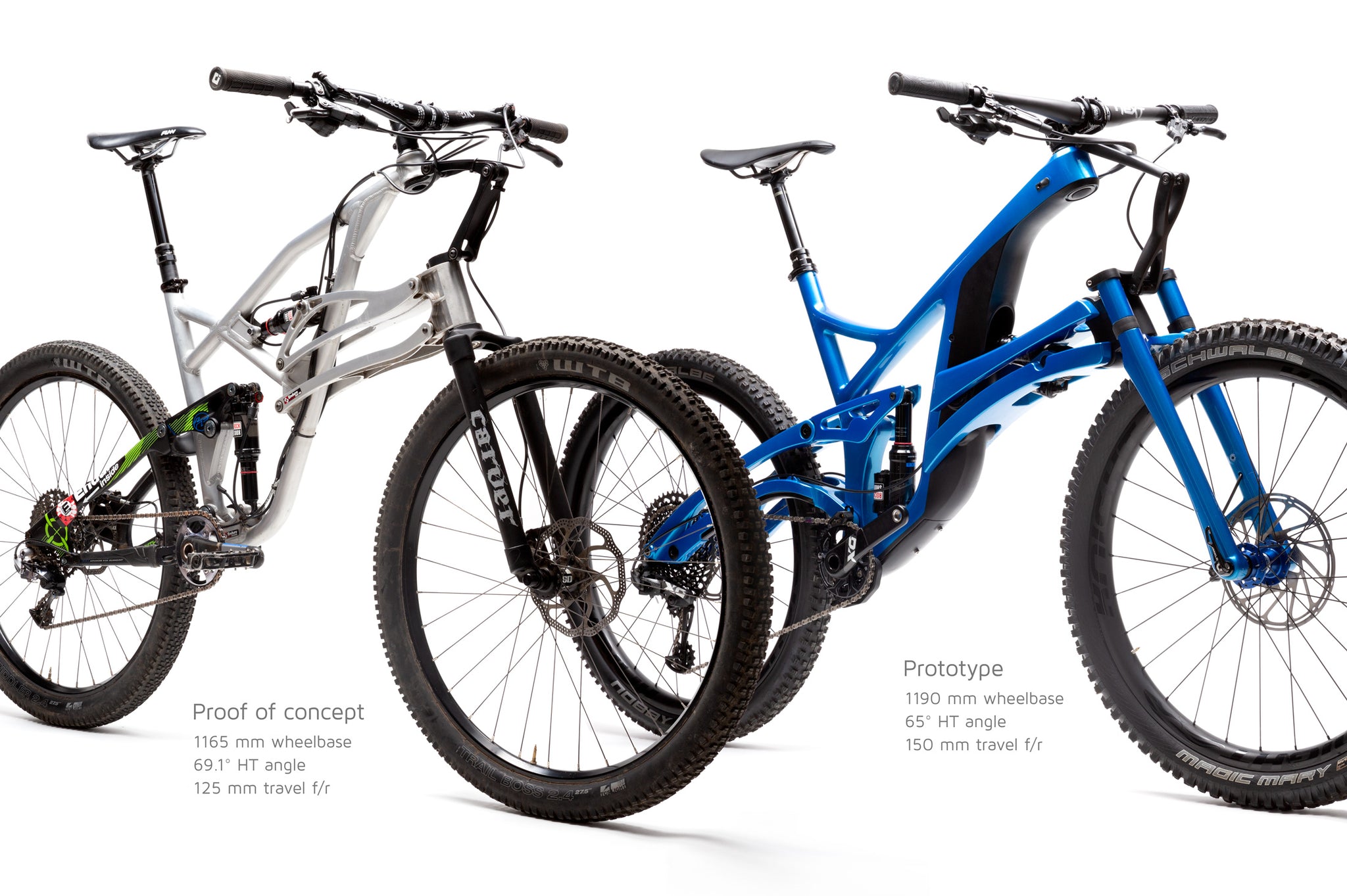

The next chapter in the evolution of the mountain bike has been over four years in the making. As we prepare for our public unveiling at Crankworx Whistler, 2017, I invite you to join us in a preview of the launch of our first model, the SCW 1.
