| Frame/Fork: | Carbon fiber, including fork, linkages and rear triangle |
| Wheels: | We Are One / “The Convert” carbon fiber / 27.5” / 35mm internal / DT Swiss 240 36-spline hubs / Sapim CX-Ray spokes |
| Tires: | Maxxis / Minion DHF 3C MaxxTerra EXO+ WT 2.6” front / Maxxis Aggressor 3C, 2.5” rear |
| Axles: | Front, Boost 15x110 GW Twist Lever / Rear, Boost 12x148 GW |
| Brakes: | Magura / MT7 Pro, Front Rotor - Magura Storm HC 203mm’ Rear Rotor - Magura Storm HC 180mm |
| Cassette: | SRAM / Eagle XX1 / XG1299 / 10 - 50 / 12 Speed |
| Chain: | SRAM / SRAM / PC-XX1-Eagle Gold Hollowpin Chain |
| Rear derailleur: | SRAM / Eagle XX1 |
| Shifter: | SRAM / Eagle XX1 |
| Crankset: | SRAM / Eagle X01 / DUB |
| Chainring: | SRAM / Eagle 12s Oval 32T direct mount non-Boost (better chainline) |
| Bottom bracket: | SRAM / DUB / BSA |
| Seat post: | OneUp / Dropper / 150mm (G1), 180mm (G2), 210mm (G3) / 36mm alloy clamp |
| Saddle: | WTB / Volt Pro |
| Shocks: | DVO Topaz / T3AIR custom tuned / 205x65 Trunnion mount |
| Headsets: | Cane Creek / 40 series |
| Stem: | OneUp / 35mm |
| Handlebar: | OneUp / 20mm Rise Bar |
| Grips: | Race Face / Half Nelson |

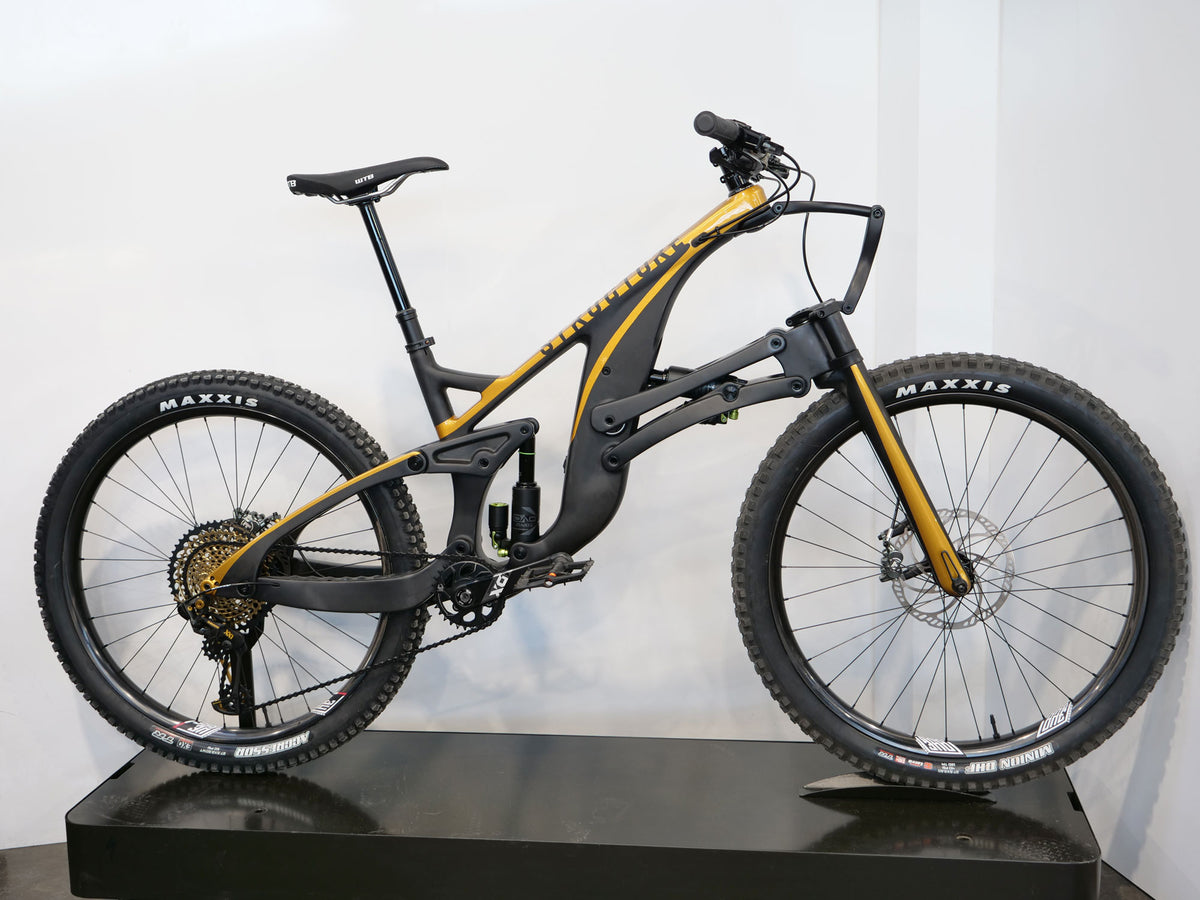

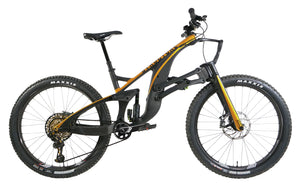

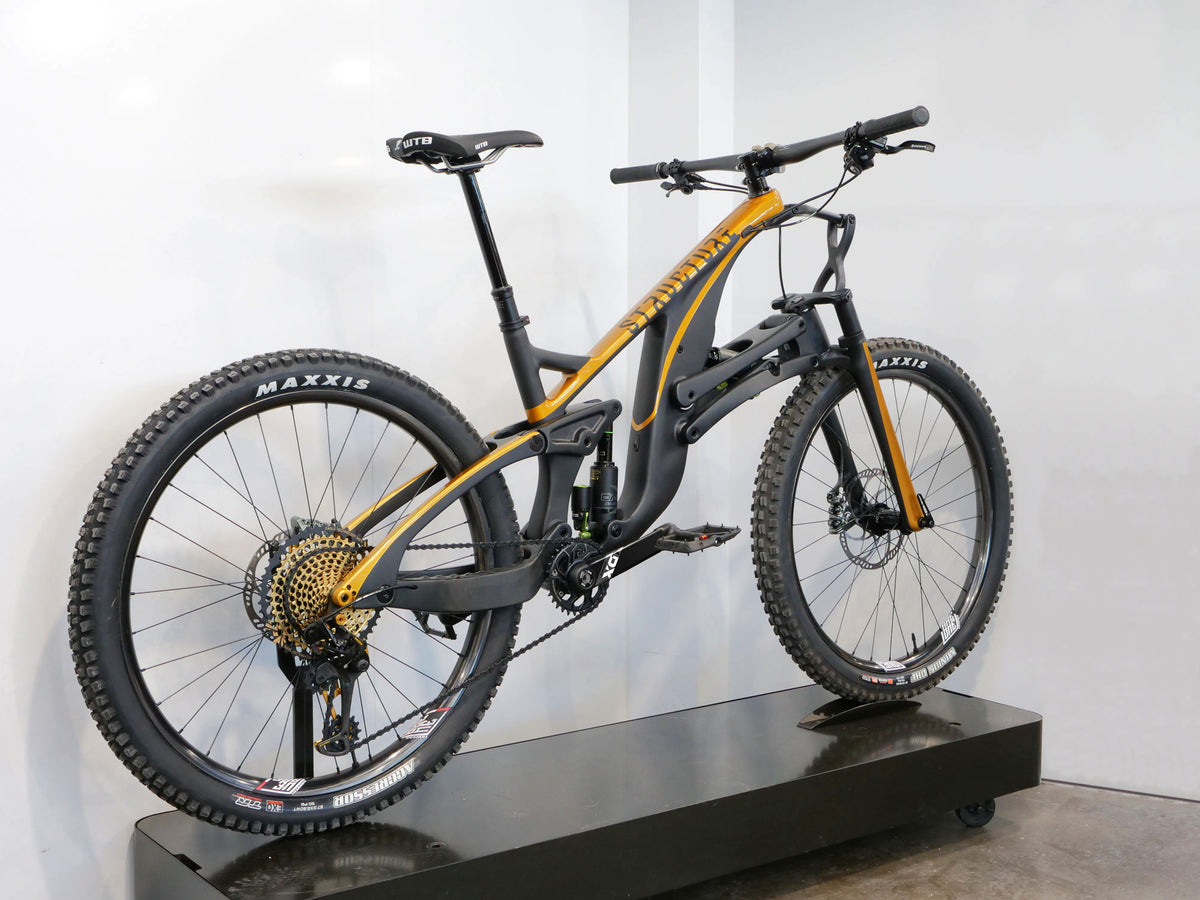

The Foundation Series is a limited colour run of gold on matte carbon. Complete bikes feature SRAM Eagle X01/XX1 drive train and We Are One Carbon Wheels.
Suggested sizing for playful handling with enhanced agility
G1: Rider height 165 cm - 180 cm / 5’5” - 5’11”
G2: Rider height 175 cm - 190 cm / 5’9” - 6’3”
G3: Rider height 185 cm - 197 cm / 6’1” - 6’5”
Suggested sizing for purposeful handling with enhanced stability
G1: Rider height 155 cm - 170 cm / 5’1” - 5’7”
G2: Rider height 165 cm - 180 cm / 5’5” - 5’11”
G3: Rider height 177 cm - 190 cm / 5’10” - 6’3”
