Full Sizing Information

• SPECS
• DESCRIPTION
• SIZES & SET UP

• Frame/Fork:	Carbon fiber, including fork, linkages and rear triangle
  Wheels:	DT Swiss / M 1700 Spline 35/ 27.5” / 35mm internal / DT Swiss 350 36-spline hubs / DT competition® straightpull
  Tires:	Maxxis / Minion DHF 3C MaxxTerra EXO+ WT 2.6” front / Maxxis Aggressor 3C, 2.5” rear
  Axles:	Front, Boost 15x110 GW Twist Lever / Rear, Boost 12x148 GW
  Brakes:	Magura / MT7 Pro, Front Rotor - Magura Storm HC 203mm’ Rear Rotor - Magura Storm HC 180mm
  Cassette:	Shimano Deore XT / 12-Speed / 10-51
  Chain:	Shimano Deore XT M8100 / 12s
  Rear derailleur:	Shimano Deore XT 1x12-speed
  Shifter:	Shimano Deore XT / Right
  Crankset:	Shimano Deore XT / hollowtech II / 1x
  Chainring:	SM-CRM85 / 32T / Chain Line 52/56.5mm
  Bottom bracket:	BB-MT800 / BSA Threaded / W/TL-FC25
  Seat post:	OneUp / Dropper / 150mm (G1), 180mm (G2), 210mm (G3) / 36mm alloy clamp
  Saddle:	WTB / Volt Pro

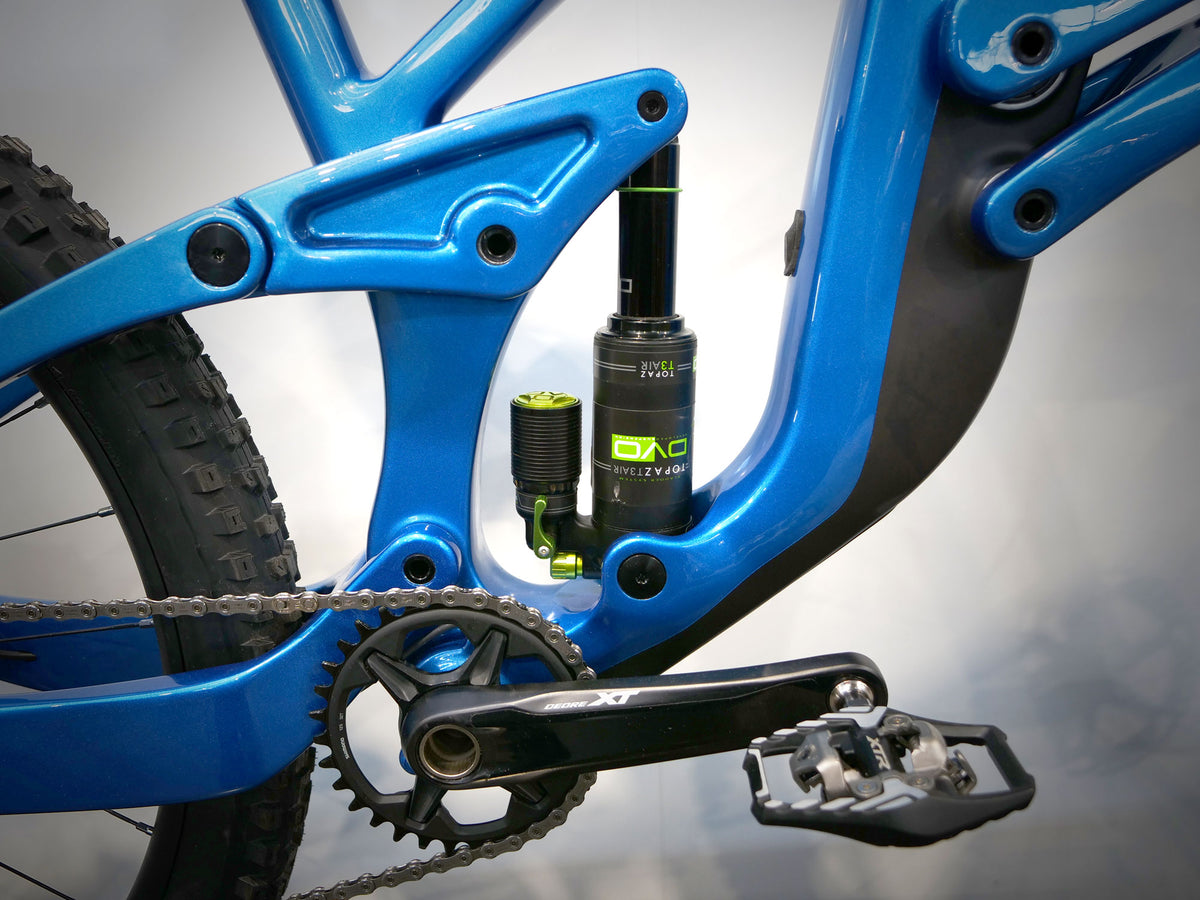

  Shocks:	DVO Topaz / T3AIR custom tuned / 205x65 Trunnion mount
  Headsets:	Cane Creek / 40 series
  Stem:	OneUp / 35mm
  Handlebar:	OneUp / 20mm Rise Bar
  Grips:	Race Face / Half Nelson

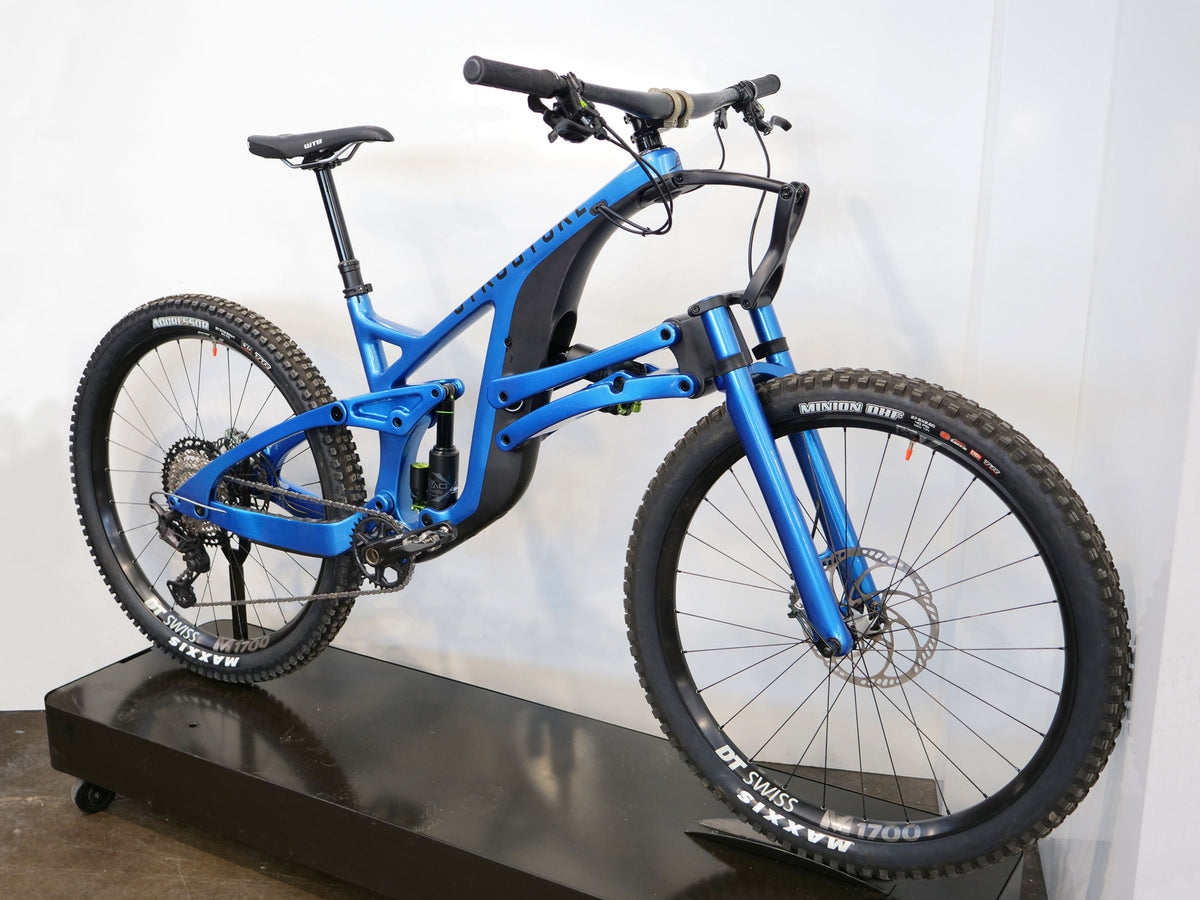

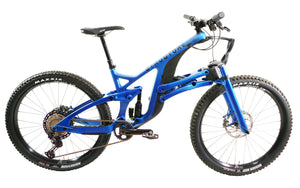

• The Janus Series is a special blue colourway. Complete bike features SRAM Eagle GX or Shimano Deore XT drive trains and DT Swiss M1700 Wheels.



• Suggested sizing for playful handling with enhanced agility

  G1: Rider height 165 cm - 180 cm / 5’5” - 5’11”
  G2: Rider height 175 cm - 190 cm / 5’9” - 6’3”
  G3: Rider height 185 cm - 197 cm / 6’1” - 6’5”

  Suggested sizing for purposeful handling with enhanced stability

  G1: Rider height 155 cm - 170 cm / 5’1” - 5’7”
  G2: Rider height 165 cm - 180 cm / 5’5” - 5’11”
  G3: Rider height 177 cm - 190 cm / 5’10” - 6’3”
